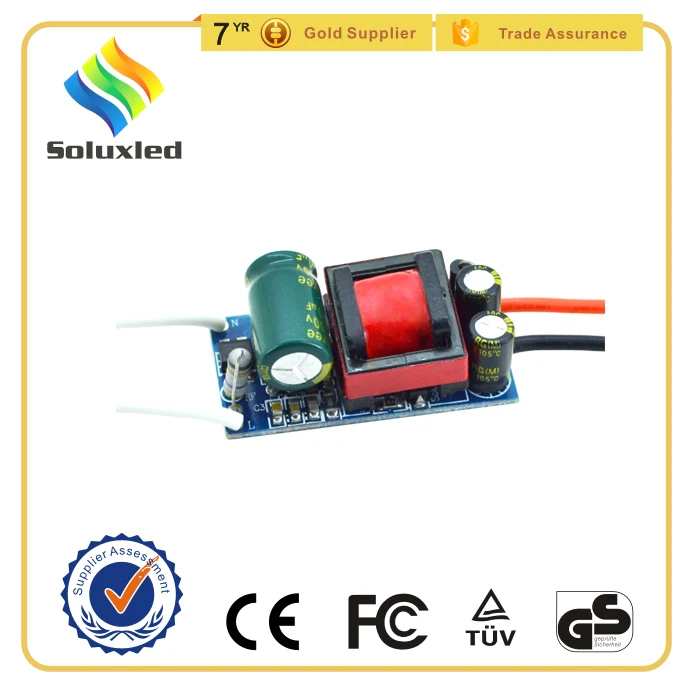

280ma 9w led bulb driver led driver 350ma

FOB Reference Price:Get Latest Price
US $1-1.5 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Soluxled
Model Number:
HG-2207B
Input Voltage:
220V
Output Voltage:
24-42V
Output Frequency:
50HZ
Output Current:
300mA±5%
Type:
led bulb driver
Size:
41*21*16mm
Protection:
Over-voltage over load
Efficiency:
80%
Warranty:
2 Years
Application:
LED bulb downlight spotlight
Certification:
FCC CE
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month

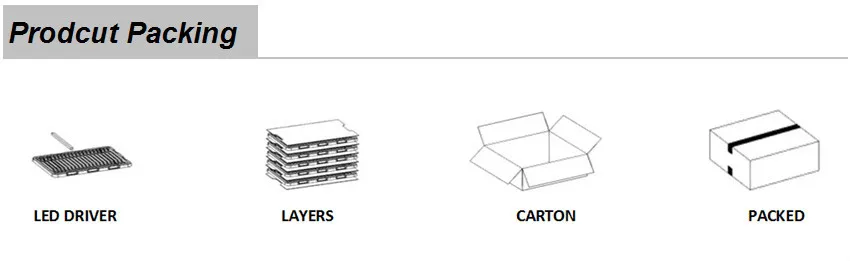

Packaging & Delivery
Packaging Details
Carton
Port
shenzhen

ModelHG-2207BApplication
Input Voltage Range AC100-260V

Led bulb light,

Led downlight light,

Led panel light,

Led spot light light,

...ect indoor lights

Frequency Range 50/60Hz
Power Factor(PFC) <0.65
AC Current (Max.) 0.24A
Output DC Voltage Range 24-42V
Constant Current Range 300mA±5%
Rated Max. Power 8-12W
Ripple 2Vp-p
Efficiency 77-85%
Protection Overload Yes
Short Circuit Yes
Over Voltage Yes
Over Temperature Yes
Others Type

Constant Current &Isolation

Waterproof Level open frame
Dimension/Weight 41*21*16mm
Packing/Carton Size 43*30*25
Cable Yes
Housing Meterial No
warranty 3 years
Certificate CE/ROHS


280ma 9w led bulb driver led driver 350ma

280ma 9w led bulb driver led driver 350ma

280ma 9w led bulb driver led driver 350ma

Small size,High efficiency,High reliablility,Long lifetime;

Working temperature-40~+65°C;

Protection:Overload,Short-circuit pratection,Over-temperature;

Start delay design,which can reduce the starting current when multipe simulatance start;

CE,EMC certificate,ROHS compliant;

Low output ripple noises.


NO.1 >> ARE YOU A MANUFACTURE?

Yes, we are 7 years manufacture experience , Already field certification by BV ( Bureau veritas ).We have Complete production equipment and R & D testing equipment as the Samsung brand SMT equipment, reflow, wave soldering wind And EMC / EMI testing equipment, high voltage tester, harmonic tester, pressure test, oscilloscope ...... etc

NO.2 >> WHAT IS YOUR SUPPLY CAPACITY ?

We can produce 300,000pcs per month.

NO.3 >> HOW DO YOU CONTROL THE QUALITY ?

All of components in the LED driver are at popular brand company,besides,quality inspector is responsibility for inspection incoming material,which control the quality from the source. 100% burn-in test before shipping.

NO.4 >> CAN YOU SEND US SAMPLES ?

We can send you the samples, will be according to your order requirements.

NO.5>> WHAT IS YOUR DELIVERY TIME ?

Some items we have stock can delivery in 24hours,we will be according to your order requirements.

Normal products: 5-7 days Customized products : 10-20 days.

NO.6 >> WHAT IS YOUR PAYMENT TERM ?

NO.7 >> HOW MANY YEARS WARRANTY FOR YOUR PRODCUTS?

Normal products can provide 3 years warranty, also can OEM for 5years.

Life-long maintance service for SOLUXLED's product about AFTER -WARRANTY SERVICE .

NO.8 >> ABOUT EXCHANGE & WARRANTY POLICY

Quality: 0.5% more or less is allowed for Electronic products .

For problematic items more then 1% , we will change new items or replace it for you.Send back us to test if possible, so that we can take the solution accordingly depending to the test report.

For all your inquiries,please contact us immediately,We will according to your actual situation to provide the best solution for you.

Remark: Due to products improvements, Product specifications, quality will be subject to the sample and according to the factory's standard configuration.

Pls contact us for more inquire: www.soluxled.cn
